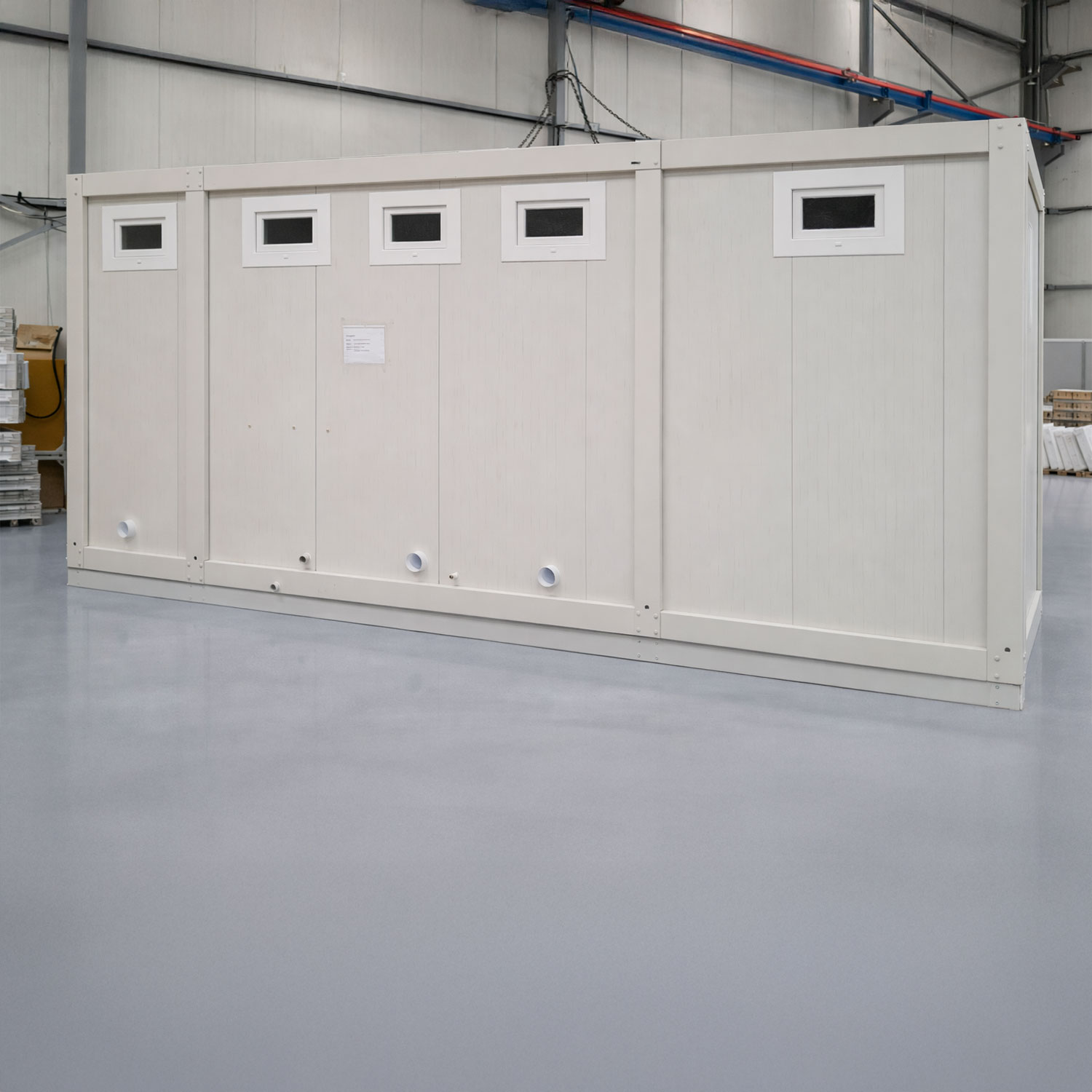

The SC-A6000.1 combined sanitary block is designed for large construction sites that require WC facilities, showers, and an accessible WC within a single unit. It delivers a high-capacity, inclusive, and practical hygiene solution for intensive site use.
The SC-A6000.1 offers a complete modular sanitary solution combining WC cabins, shower facilities, and PMR accessibility.

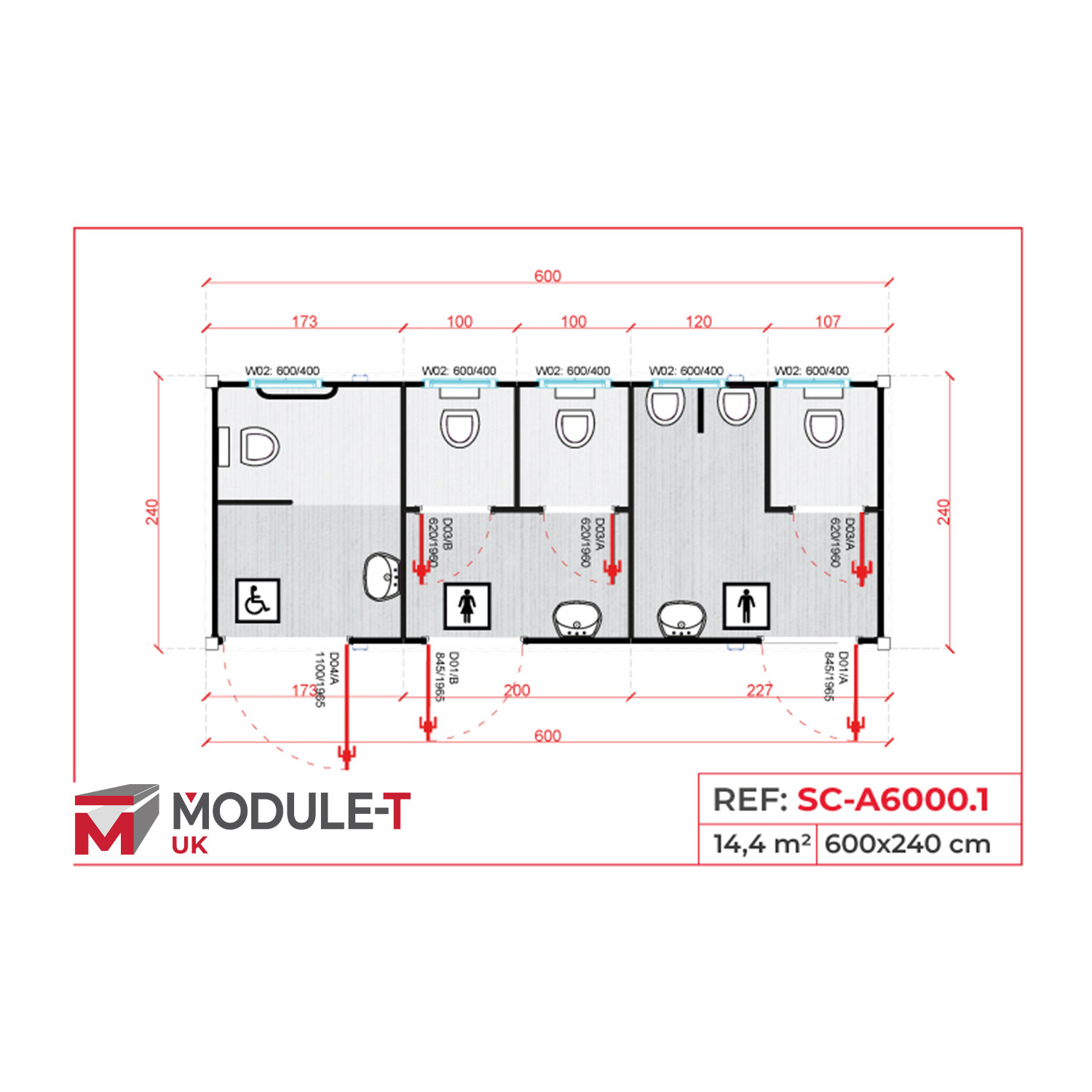

The SC-A6000.1 combined sanitary block is developed to meet complex hygiene requirements on construction sites, industrial projects, and temporary facilities with high user traffic. With a total surface area of 14.4 m² and dimensions of 600 × 240 cm, this unit integrates multiple sanitary functions into a single, well-organized modular structure. The block includes multiple independent WC cabins, designed to ensure privacy and smooth circulation during peak usage periods. In addition, integrated shower facilities allow workers to maintain personal hygiene after long and physically demanding workdays, improving comfort and overall well-being on site. A dedicated PMR accessible space is incorporated into the layout, offering sufficient room for wheelchair circulation, safety features for assisted use, and an accessible configuration compliant with accessibility requirements. This ensures inclusive use without compromising overall capacity or efficiency. Built with a robust modular structure and easy-to-clean interior surfaces, the SC-A6000.1 is suitable for intensive daily use in demanding environments. It is an ideal solution for large construction sites that require a durable, high-capacity, and fully inclusive sanitary installation within a single unit.
10-Foot construction site toilets
(3.00×2.40m) or 20 feet (6×2.40m) and length up to 11.70m in a block floor. Width of a standard construction site toilet 240cm – Width oversize 300cm
Small cabin-type dimensions: single 143x143cm / double 143x268cm
Disabled toilet: minimum space 200x240cm
Standard ceiling height 240cm / 220cm.
Possibility of connecting and stacking sanitary bungalows to form larger spaces.
Highly galvanized steel frame profiles 120x150x1.50 mm – C 80x50x1.50 mm.
Highly galvanized and recessed steel floor and ceiling frame crosspieces.
Standard floor load 250kg/m2 – possibility of reinforcing the floor load up to 500kg/m2. Standard snow load 80kg/m2.
Wall insulation: 40/50mm polyurethane or rock wool (option : reinforced insulation 60 or 100mm)
Ceiling insulation: 40/50mm polyurethane (option: reinforced insulation of 60 or 100mm)
Option : 50mm or 100mm rock wool floor insulation.
Surface A1 18mm cement fiber + 3mm non-slip PVC coating – parquet or tile option. Floor load of 250kg/m2. (option: reinforcement of the floor load up to 500kg/m2)
Sandwich panel surface made of highly galvanized and lacquered steel plate. Color RAL9002
Ceiling insulation in 40 or 50mm polyurethane foam (option: ceiling insulation 60 or 100mm)
Water drainage through gutters integrated into the structure.
Insulated exterior steel doors (845×1960 mm) – interior doors in MDF for wet areas or PVC – double-glazed windows 970×1200 mm – PVC skylights 600x400mm for sanitary facilities 600x400mm. Option: custom windows – aluminum joinery – PVC or aluminum roller shutters, protective bars.
Ceramic washbasin (option: stainless steel basin)
Classic WC, ceramic urinal (option: stainless steel)
Accessories included: soap dish/toilet paper, soap dispenser, mirror.
Option: 15L or 30L sink water heater
Option: 1000W or 2000W wall-mounted convector heater.
2x36W LEDs, IP44 sockets, Viko switches, Siemens fuses, NF C15-100 wiring.
Connection to the sewer system or autonomous operation. (tank, septic tank, drainage)
Mirrors, paper holders, soap dispensers, vanity units, AFNOR marking.
Configuration for PMR toilets: ramp n, PMR door, grab bar and stainless steel accessories
Security : steel bars in painted steel.
Natural ventilation with PVC ventilation grille and electric extractor fan (VMC) 100mm / 150mm
Yes, our toilets comply with the NF standards in terms of hygiene, accessibility and electrical safety (NF C15-100). Each model is designed according to the requirements of the French Labour Code.
Yes. Our modules can be delivered in a dismountable kit or in a pre-assembled single unit, facilitating installation and movement from one site to another.
Absolutely. We offer modules with recovery tank, lifting pump, Or autonomous supply and evacuation system, suitable for isolated sites.
It depends on the model. A simple module is suitable for 4 to 6 people/day, while a triple sanitary can accommodate 15 to 20 people. We also offer tailor-made solutions for up to 50 users.
Yes, thanks to high-performance insulation (50 mm) Our construction site toilets can be used all year round, even in harsh weather conditions.
