Modular Security Cabin with Open Workspace – 5.76 m²
Open Layout, Flexible Workstation
This modular security cabin combines a 5.76 m² external footprint with an open interior workspace and lateral access for entrance monitoring and access-control duties.
Options :

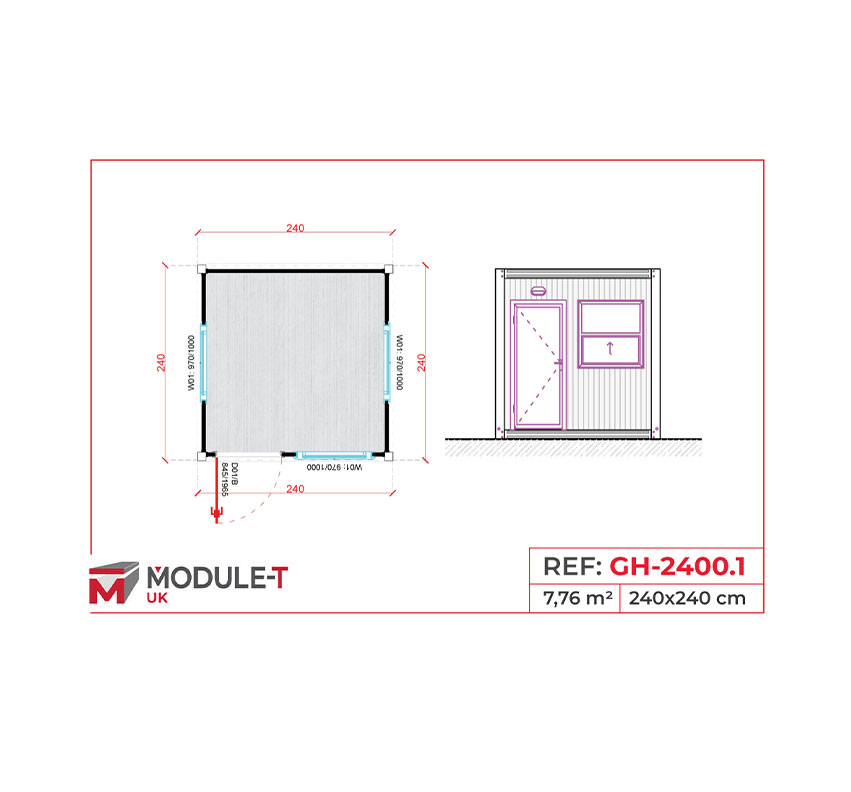

The GH-2400.1 modular security cabin uses a square 240 × 240 cm footprint with an open interior layout and a lateral external door. The additional space provides greater flexibility for arranging a desk, monitoring equipment and access-control systems than the smaller 4 m² model.
Modular Security Cabin with Open Workspace
The GH-2400.1 modular security cabin combines external dimensions of 240 × 240 cm with a 5.76 m² external footprint. Its square, open interior workspace provides greater flexibility for arranging a desk, visitor records and monitoring equipment than the smaller 4 m² model; furniture and equipment should not be assumed to be included unless confirmed in the quotation. The published layout uses a lateral external door, helping to keep the main observation side available for entrance-monitoring duties. Customers should review the plan carefully to confirm the required viewing direction, door clearance, workstation position, electrical connections and surrounding circulation space. Compare the smaller 4 m² security cabin with a window-facing workstation, the larger 7.2 m² security cabin with office space or explore all Module-T UK security cabins. To discuss the required layout, request a quotation. For UK guidance on organising pedestrian and vehicle routes around controlled entrances, see the Health and Safety Executive guidance.
240 × 240 cm external dimensions
5.76 m² external footprint
Open interior workspace
Lateral external access
Flexible desk and equipment arrangement
More workspace than the 4 m² model
Galvanised steel modular structure
Insulated sandwich-panel walls
Modular Security Cabin at a Glance
- Model reference: GH-2400.1
- External dimensions: 240 × 240 cm
- External footprint: 5.76 m²
- Interior layout: Open workspace
- Access: Lateral external door
- Primary function: Entrance monitoring and access control
- Furniture supply: To be confirmed during quotation
- Sanitary facilities: Not included in the published configuration
Similar Plans
Modular Security Cabin
Technical Features
External Dimensions
External Footprint
Interior Layout
Structure
Wall Covering
Ceiling
Floor
Roofing
Windows
Exterior Door
Electrical Installation
Sanitary Facilities
5.76 m², calculated from the published external dimensions. The net usable internal area should be confirmed from the technical plan.
Open workspace suitable for arranging a desk and monitoring equipment. Furniture and equipment supply must be confirmed separately.
Galvanised steel frame with steel C-profile structural elements.
Sandwich panels with 50 mm polyurethane insulation and galvanised steel sheet surfaces.
Insulated panel construction with a smooth white internal finish.
Cement-fibre floorboard with a 3 mm non-slip PVC finish.
Roof structure with rainwater drainage through the corner columns.
PVC-framed double-glazed windows with a 4 + 9 + 4 mm glazing configuration.
The published layout includes a lateral external door. Its orientation and opening clearance should be confirmed during quotation.
Lighting, sockets and connection requirements must be confirmed according to the destination and project specification.
WC, washbasin and shower facilities are not included in the published GH-2400.1 configuration.
Available Customization
Options
Workspace Layout
Desk dimensions, furniture and monitoring-equipment positions can be reviewed against the available interior space.
Window Configuration
The viewing direction and requested changes to the published window arrangement are subject to technical review.
Electrical and Data Requirements
Required sockets, lighting and data connections can be assessed against the intended access-control equipment.
Exterior and Insulation Options
Available exterior finishes and insulation requirements can be discussed with Module-T UK according to the site and project specification.
Modular Security Cabin
Applications
Industrial Site Entrances
An open monitoring workspace for observing authorised staff, visitors and approaching vehicles.
Construction Site Gates
Provides space for routine access checks, delivery records and monitoring equipment near a controlled entrance.
Logistics Entrances
Suitable for observing scheduled vehicles and managing access information at delivery gates.
Car Park Control Points
A security workspace positioned near entrance barriers, exit lanes or controlled parking areas.
Commercial Premises
Supports visitor observation and access-management duties at controlled business entrances.
Campus Entrances
Provides a defined position for visitor guidance and entrance monitoring at education or business campuses.
Service Yard Gates
Suitable for monitoring authorised vehicles and deliveries entering controlled service areas.
Event Access Points
An enclosed workspace for staff managing controlled entrances where the 240 × 240 cm footprint can be accommodated.
Frequently Asked Questions
What are the dimensions of this modular security cabin?
The GH-2400.1 has external dimensions of 240 × 240 cm, creating an external footprint of 5.76 m².
Does 5.76 m² represent the net usable internal area?
The 5.76 m² figure is calculated from the published external dimensions. The net usable internal area may be smaller because of the wall construction and should be confirmed from the technical plan.
How does this model differ from the 4 m² security cabin?
The GH-2400.1 provides an additional 1.76 m² of external footprint and uses a more open interior layout with lateral access. The 4 m² model prioritises a compact, window-facing workstation.
Where is the external door positioned?
The published configuration uses a lateral external door. The required orientation and opening clearance should be confirmed against the proposed site layout.
Are the desk and monitoring equipment included?
Furniture and monitoring equipment should not be assumed to be included. State the required desk, equipment and connection arrangements when requesting a quotation.
How many people can use this security cabin?
The open layout provides more workspace than the smaller models, but personnel capacity should not be assumed without reviewing the furniture, equipment and required working clearances.
Does the GH-2400.1 include a toilet or washbasin?
No sanitary facilities are shown in the published GH-2400.1 configuration. Any alternative requirement must be reviewed separately by Module-T UK.
What information is required for a quotation?
Provide the required quantity, delivery location, intended use, preferred viewing direction, site-access conditions and any furniture, electrical, data or monitoring-equipment requirements.
