Security Guard Cabin with Office Space – 7.2 m²
Wider Visibility, More Working Space
This security guard cabin combines a large front surveillance window with a 7.2 m² external footprint and office-style workspace for entrance monitoring and access management.
Options :
The GH-3000.1 security guard cabin measures 300 × 240 cm and provides more workspace for monitoring equipment, visitor records and administrative tasks than the smaller models. Its large front window supports observation towards the controlled entrance.
Security Guard Cabin with Office Space

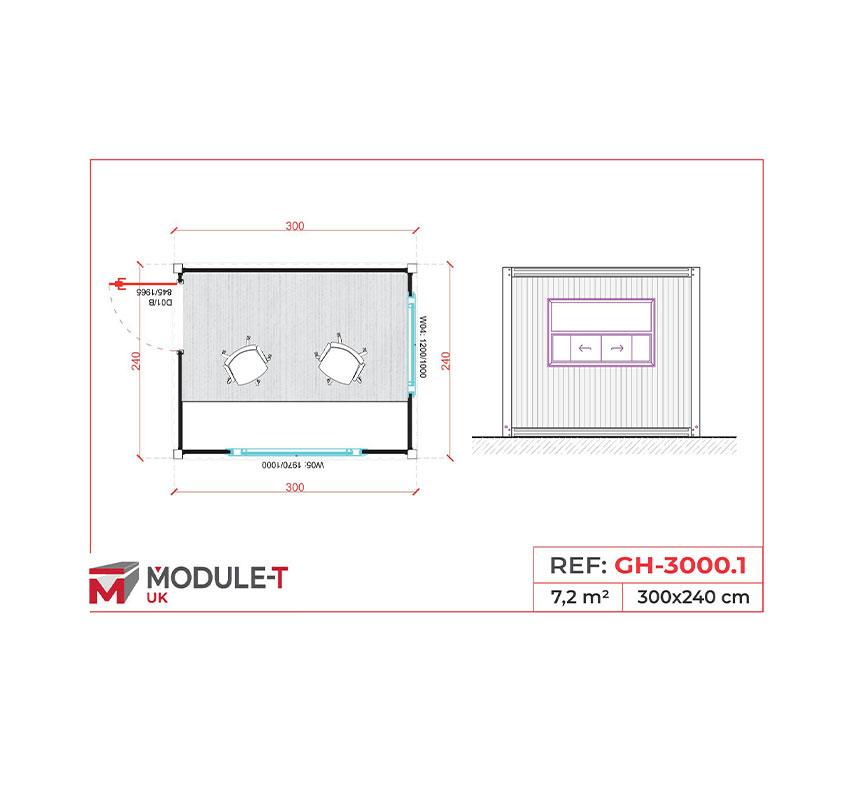

The GH-3000.1 security guard cabin combines external dimensions of 300 × 240 cm with a 7.2 m² external footprint. Its larger interior workspace provides room for organising a desk, visitor records and monitoring equipment while retaining the product’s primary role as an entrance-control cabin; furniture and equipment should not be assumed to be included unless confirmed in the quotation. A large front surveillance window supports observation towards approaching pedestrians and vehicles without implying unrestricted or blind-spot-free visibility. Customers should review the product plan to confirm the window direction, external door arrangement, working clearances and required electrical or data connections. Compare the smaller 5.76 m² modular security cabin, the larger 9.6 m² security cabin with two workstation positions or explore all Module-T UK security cabins. To discuss the required layout, request a quotation. For UK guidance on organising pedestrian and vehicle routes around controlled entrances, see the Health and Safety Executive guidance.
300 × 240 cm external dimensions
7.2 m² external footprint
Large front surveillance window
Office-style security workspace
Space for monitoring and administrative tasks
More workspace than the 5.76 m² model
Galvanised steel modular structure
Insulated sandwich-panel walls
Security Guard Cabin at a Glance
- Model reference: GH-3000.1
- External dimensions: 300 × 240 cm
- External footprint: 7.2 m²
- Interior layout: Office-style security workspace
- Main feature: Large front surveillance window
- Primary function: Entrance monitoring, visitor records and access management
- Furniture supply: To be confirmed during quotation
- Sanitary facilities: Not included in the published configuration
Similar Plans
Security Guard Cabin
Technical Features
External Dimensions
External Footprint
Workspace Layout
Structure
Wall Covering
Ceiling
Floor
Roofing
Windows
Exterior Door
Electrical Installation
Sanitary Facilities
7.2 m², calculated from the published external dimensions. The net usable internal area should be confirmed from the technical plan.
Office-style security workspace suitable for arranging a desk, records and monitoring equipment. Furniture supply must be confirmed separately.
Galvanised steel frame with steel C-profile structural elements.
Sandwich panels with 50 mm polyurethane insulation and galvanised steel sheet surfaces.
Insulated panel construction with a smooth white internal finish.
Cement-fibre floorboard with a 3 mm non-slip PVC finish.
Roof structure with rainwater drainage through the corner columns.
PVC-framed double-glazed windows with a 4 + 9 + 4 mm glazing configuration. The published model includes a large front surveillance window.
The door position and required opening clearance should be confirmed against the published plan and proposed site layout.
Lighting, sockets, data connections and equipment requirements must be confirmed according to the destination and project specification.
WC, washbasin and shower facilities are not included in the published GH-3000.1 configuration.
Security Guard Cabin
Customisation Options
Workspace Arrangement
Desk dimensions, furniture and monitoring-equipment positions can be assessed against the available interior space.
Window Configuration
The required viewing direction and any requested changes to the published glazing arrangement are subject to technical review.
Electrical and Data Requirements
Required sockets, lighting and data connections can be reviewed against the intended access-control and monitoring equipment.
Climate and Exterior Options
Heating, air conditioning and available exterior finishes can be discussed according to the site and project requirements.
Security Guard Cabin
Applications
Industrial Main Entrances
Provides space for entrance observation, visitor records and routine access-management tasks.
Construction Site Gates
A larger monitoring workspace for managing workers, visitors and scheduled deliveries.
Logistics Access Points
Suitable for observing approaching vehicles and recording access at controlled delivery entrances.
Commercial Premises
Combines entrance monitoring with space for visitor-management and administrative duties.
Distribution Centres
A defined security position for recording vehicle and personnel movements at controlled gates.
Car Park Entrances
Supports barrier observation, access checks and associated record-keeping activities.
Campus Entrances
Provides a security workspace for visitor direction and monitoring at controlled campus access points.
Visitor Checkpoints
Suitable where observation and basic administrative tasks must be handled from the same security cabin.
Frequently Asked Questions
What are the dimensions of this security guard cabin?
The GH-3000.1 has external dimensions of 300 × 240 cm, creating an external footprint of 7.2 m².
Does 7.2 m² represent the net usable internal area?
The 7.2 m² figure is calculated from the published external dimensions. The net usable internal area may be smaller because of the wall construction and should be confirmed from the technical plan.
How does this model differ from the 5.76 m² security cabin?
The GH-3000.1 is 60 cm longer and provides an additional 1.44 m² of external footprint. It also prioritises a larger front window and office-style working space.
What is the purpose of the large front window?
The front window supports observation towards a controlled entrance while the operator carries out access checks, monitoring or record-keeping tasks.
Are the desk and office furniture included?
Furniture should not be assumed to be included. Desk dimensions, storage and equipment requirements must be confirmed during quotation.
How many people can work inside the cabin?
Personnel capacity should not be assumed from the external area alone. The proposed furniture, equipment and required working clearances must be reviewed before confirming suitability.
Does this security cabin contain a toilet?
No sanitary facilities are shown in the published GH-3000.1 configuration. Any alternative requirement must be reviewed separately by Module-T UK.
What information is required for a quotation?
Provide the required quantity, delivery location, entrance layout, preferred viewing direction and any furniture, electrical, data or monitoring-equipment requirements.
