The SC-A2000.1 PMR sanitary cabin is designed to provide safe, comfortable, and compliant toilet facilities for people with reduced mobility. Offering generous internal space and an accessible layout, it is ideal for construction sites, public areas, and temporary facilities requiring inclusive sanitary solutions.
The SC-A2000.1 WC cabin delivers a fully accessible and regulation-compliant sanitary solution for inclusive environments.

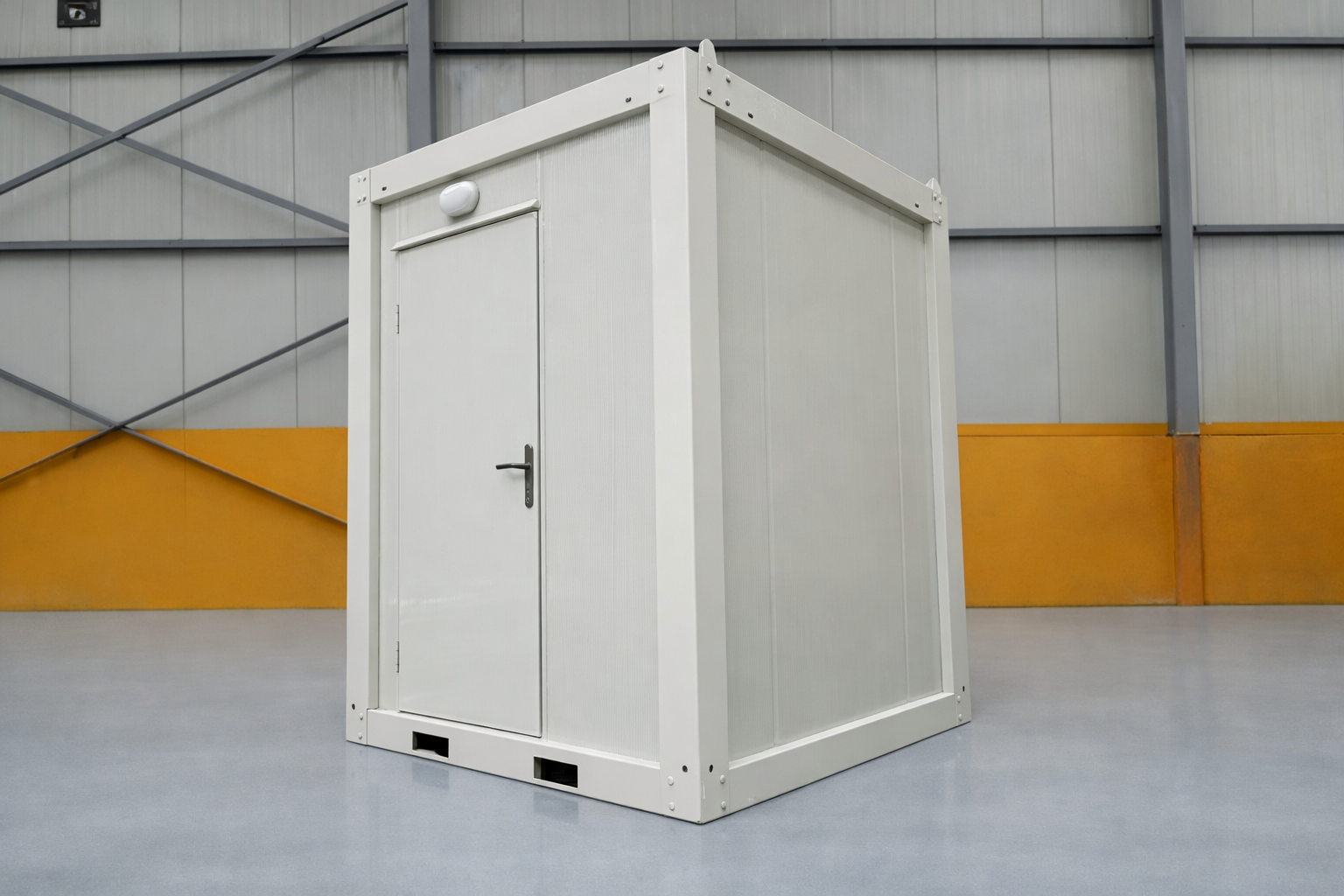

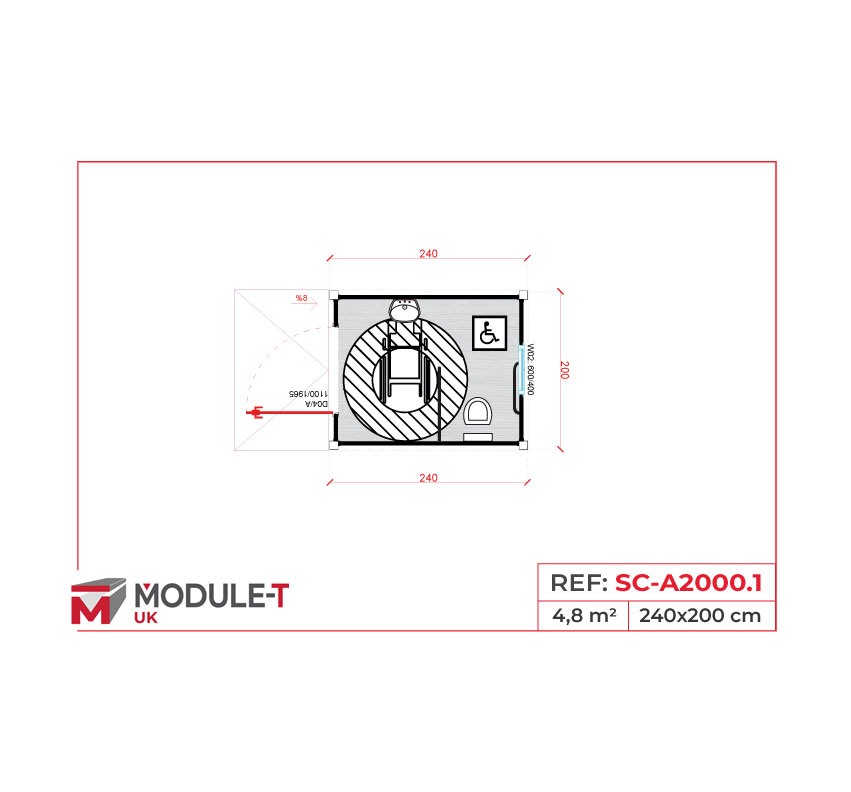

The SC-A2000.1 PMR sanitary WC cabin is specifically designed to meet the needs of users with reduced mobility while ensuring full compliance with accessibility standards. With a total surface area of 4.8 m² and dimensions of 240 × 200 cm, this unit provides a spacious and functional interior that allows comfortable and safe use.

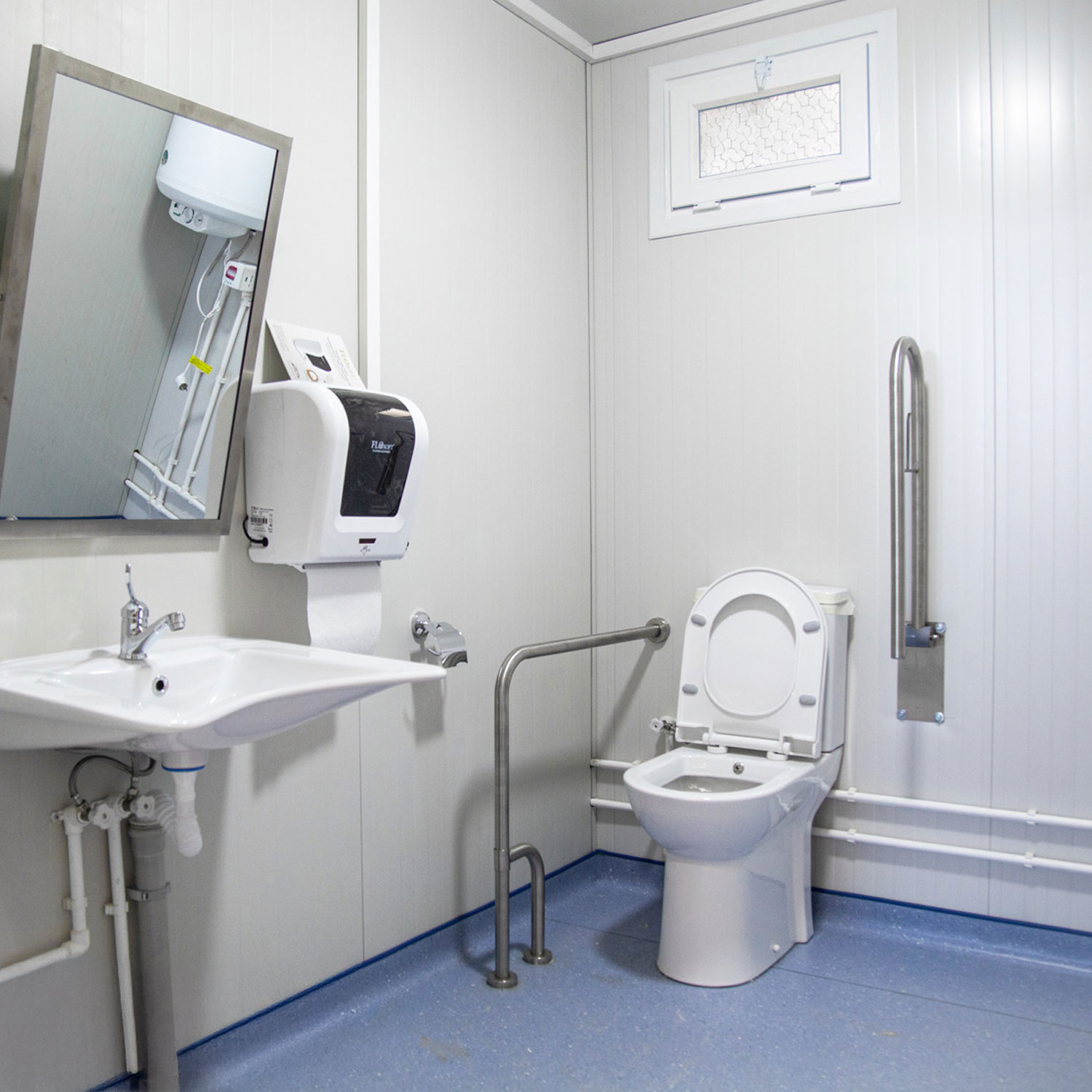

The internal layout is optimized to ensure smooth wheelchair circulation, including a minimum turning diameter of 150 cm, enabling users to move freely and safely inside the cabin. The unit is equipped with a raised toilet, side grab bars to assist transfers, and an accessible washbasin installed at an ergonomic height.

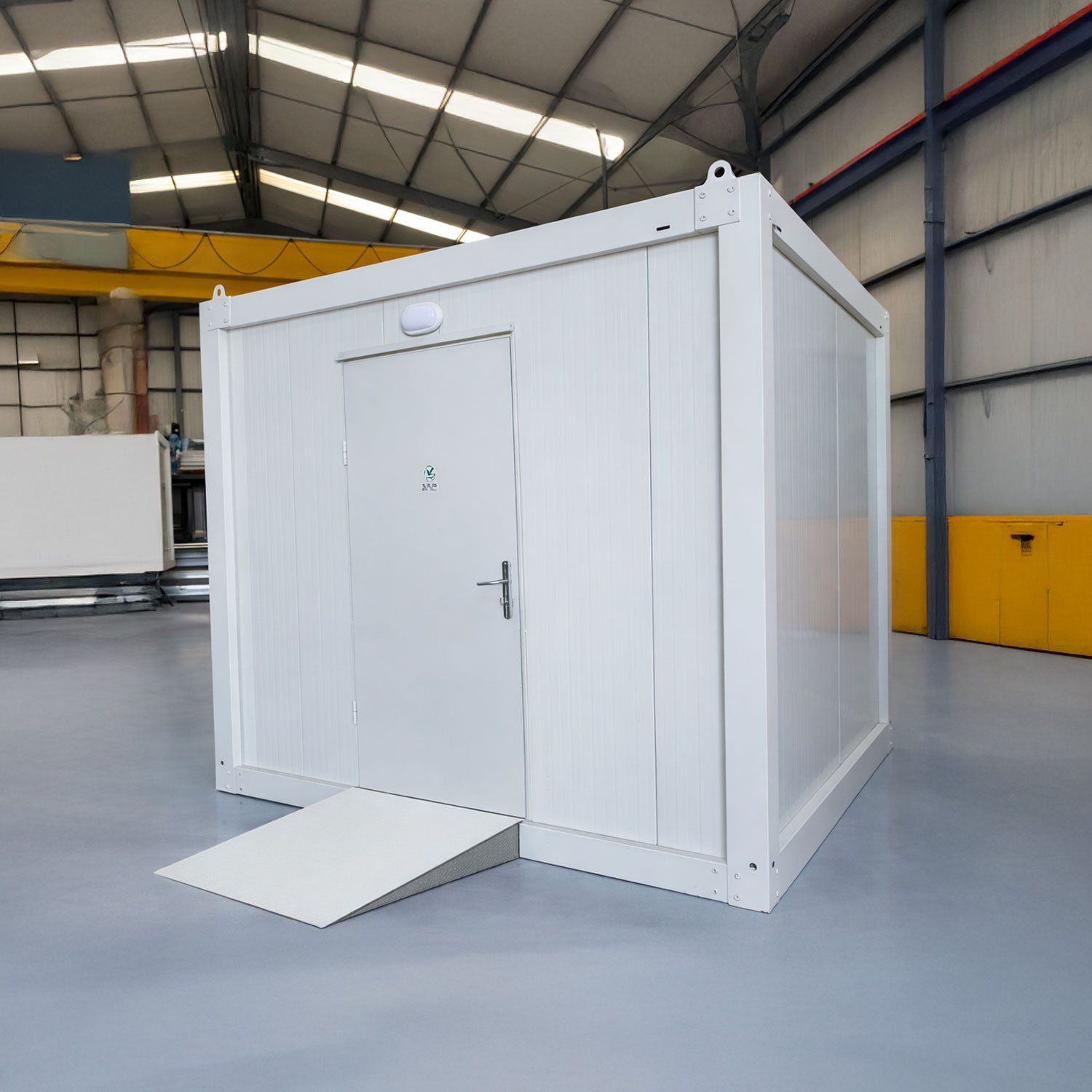

Access to the cabin is facilitated by a wide entrance door and a threshold-free design, ensuring easy and secure entry. These features make the SC-A2000.1 suitable for users with varying mobility needs while maintaining a high level of comfort and independence.
Built with a robust modular structure, this PMR WC cabin is suitable for use on construction sites, public spaces, temporary event areas, and industrial environments. It provides a reliable, durable, and inclusive sanitary solution that delivers accessibility without compromising functionality or hygiene standards.
Highly galvanized steel frame profiles 120x150x1.50 mm – C 80x50x1.50 mm.
Highly galvanized and recessed steel floor and ceiling frame crosspieces.
Standard floor load 250kg/m2 – possibility of reinforcing the floor load up to 500kg/m2. Standard snow load 80kg/m2.
Highly galvanized steel frame profiles 120x150x1.50 mm – C 80x50x1.50 mm.
Highly galvanized and recessed steel floor and ceiling frame crosspieces.
Standard floor load 250kg/m2 – possibility of reinforcing the floor load up to 500kg/m2. Standard snow load 80kg/m2.
Wall insulation: 40/50mm polyurethane or rock wool (option : reinforced insulation 60 or 100mm)
Ceiling insulation: 40/50mm polyurethane (option: reinforced insulation of 60 or 100mm)
Option : 50mm or 100mm rock wool floor insulation.
Surface A1 18mm cement fiber + 3mm non-slip PVC coating – parquet or tile option. Floor load of 250kg/m2. (option: reinforcement of the floor load up to 500kg/m2)
Sandwich panel surface made of highly galvanized and lacquered steel plate. Color RAL9002
Ceiling insulation in 40 or 50mm polyurethane foam (option: ceiling insulation 60 or 100mm)
Water drainage through gutters integrated into the structure.
Insulated exterior steel doors (845×1960 mm) – interior doors in MDF for wet areas or PVC – double-glazed windows 970×1200 mm – PVC skylights 600x400mm for sanitary facilities 600x400mm. Option: custom windows – aluminum joinery – PVC or aluminum roller shutters, protective bars.
Ceramic washbasin (option: stainless steel basin)
Classic WC, ceramic urinal (option: stainless steel)
Accessories included: soap dish/toilet paper, soap dispenser, mirror.
Option: 15L or 30L sink water heater
Option: 1000W or 2000W wall-mounted convector heater.
2x36W LEDs, IP44 sockets, Viko switches, Siemens fuses, NF C15-100 wiring.
Connection to the sewer system or autonomous operation. (tank, septic tank, drainage)
Mirrors, paper holders, soap dispensers, vanity units, AFNOR marking.
Configuration for PMR toilets: ramp n, PMR door, grab bar and stainless steel accessories
Security : steel bars in painted steel.
Natural ventilation with PVC ventilation grille and electric extractor fan (VMC) 100mm / 150mm
Yes, our toilets comply with the NF standards in terms of hygiene, accessibility and electrical safety (NF C15-100). Each model is designed according to the requirements of the French Labour Code.
Yes. Our modules can be delivered in a dismountable kit or in a pre-assembled single unit, facilitating installation and movement from one site to another.
Absolutely. We offer modules with recovery tank, lifting pump, Or autonomous supply and evacuation system, suitable for isolated sites.
It depends on the model. A simple module is suitable for 4 to 6 people/day, while a triple sanitary can accommodate 15 to 20 people. We also offer tailor-made solutions for up to 50 users.
Yes, thanks to high-performance insulation (50 mm) Our construction site toilets can be used all year round, even in harsh weather conditions.
