400 × 240 cm.
By
Module-T
Security Cabin Plan – 9.6 m² Dual-Workstation Layout
Two Working Positions, Coordinated Monitoring
This 9.6 m² security cabin plan provides two workstation positions facing surveillance windows for coordinated entrance monitoring and access-management tasks.
Options :

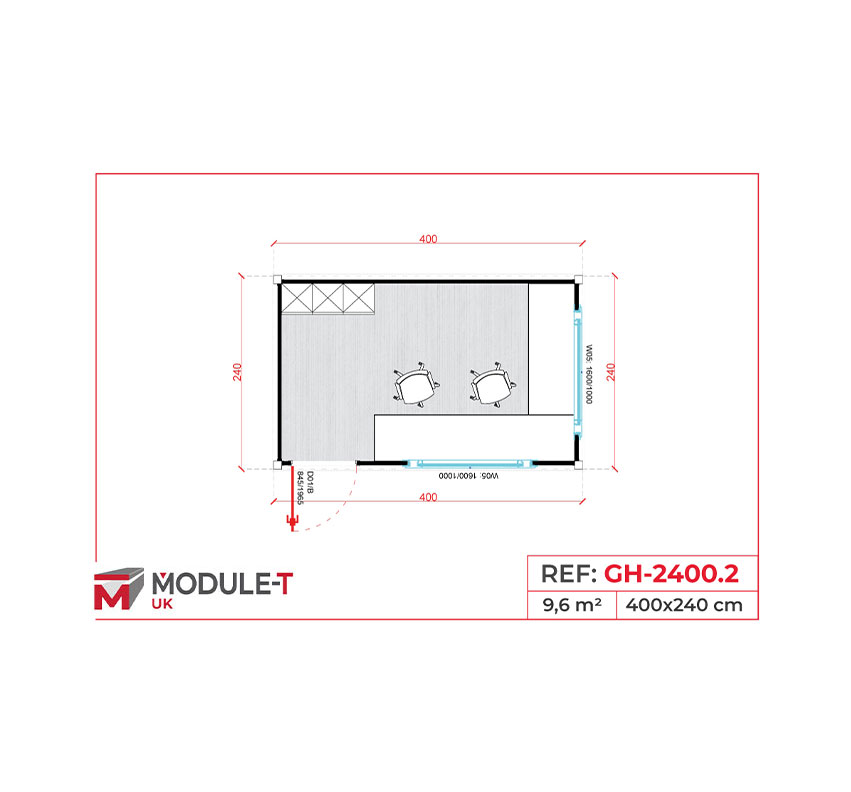

The GH-2400.2 security cabin plan uses external dimensions of 400 × 240 cm and shows two workstation positions facing surveillance windows. The layout provides separate working areas for organising monitoring, visitor-record and access-control duties.
Security Cabin Plan with Two Workstation Positions
The GH-2400.2 security cabin plan combines external dimensions of 400 × 240 cm with a 9.6 m² external footprint. Its published layout shows two separate workstation positions facing surveillance windows, allowing monitoring and access-management duties to be organised across different working areas. The desks, furniture and monitoring equipment shown or represented in the plan should not be assumed to be included unless confirmed in the quotation. Customers should review the plan to confirm the viewing direction from each position, door clearance, equipment placement and required electrical or data connections. Although the layout shows two workstation positions, personnel capacity should be confirmed according to the selected furniture, equipment and working-clearance requirements. Compare the smaller 7.2 m² security guard cabin with office space, the 5.76 m² modular security cabin or explore all Module-T UK security cabins. To discuss the required configuration, request a quotation. For UK guidance on organising pedestrian and vehicle routes around controlled entrances, see the Health and Safety Executive guidance.
400 × 240 cm external dimensions
9.6 m² external footprint
Two planned workstation positions
Workstations facing surveillance windows
Separate areas for monitoring and access tasks
Largest model in the current security cabin range
Galvanised steel modular structure
Insulated sandwich-panel walls
9.6 m² Security Cabin at a Glance
- Model reference: GH-2400.2
- External dimensions: 400 × 240 cm
- External footprint: 9.6 m²
- Workstation layout: Two planned positions
- Viewing arrangement: Workstation positions facing surveillance windows
- Primary function: Coordinated entrance monitoring and access management
- Furniture supply: To be confirmed during quotation
- Sanitary facilities: Not included in the published configuration
Similar Plans
Security Cabin
Technical Features
External Dimensions
External Footprint
Workstation Layout
Structure
Wall Covering
Ceiling
Floor
Roofing
Windows
Exterior Door
Electrical Installation
Sanitary Facilities
9.6 m², calculated from the published external dimensions. The net usable internal area should be confirmed from the technical plan.
The published plan shows two workstation positions facing surveillance windows. Desks, furniture and equipment supply must be confirmed separately.
Galvanised steel frame with steel C-profile structural elements.
Sandwich panels with 50 mm polyurethane insulation and galvanised steel sheet surfaces.
Insulated panel construction with a smooth white internal finish.
Cement-fibre floorboard with a 3 mm non-slip PVC finish.
Roof structure with rainwater drainage through the corner columns.
PVC-framed double-glazed windows with a 4 + 9 + 4 mm glazing configuration. The required viewing directions should be confirmed from the product plan.
The door position and opening clearance should be checked against the published plan and proposed site layout.
Lighting, sockets, data connections and equipment requirements must be confirmed according to the destination and project specification.
WC, washbasin and shower facilities are not included in the published GH-2400.2 configuration.
Available Customization
Options
Workstation Arrangement
Desk dimensions, furniture and equipment positions can be assessed for each planned working area.
Window Configuration
The viewing direction from each workstation and requested changes to the glazing arrangement are subject to technical review.
Electrical and Data Requirements
Sockets, lighting and data connections can be planned according to the equipment required at each workstation.
Climate and Exterior Options
Heating, air conditioning and available exterior finishes can be discussed according to the site and project requirements.
Security Cabin Applications
Applications
Busy Construction Entrances
Provides separate working positions for monitoring access and recording workers, visitors or deliveries.
Logistics Access Gates
Supports the organisation of vehicle observation and access-management duties across two working areas.
Industrial Main Entrances
Suitable where personnel, visitor and vehicle movements must be managed from the same security cabin.
Distribution Centres
Provides space for monitoring scheduled vehicles while maintaining access records and communication equipment.
Vehicle and Visitor Checkpoints
Allows separate working areas to be arranged for vehicle checks and visitor-management duties.
Commercial Premises
A larger security workspace for controlled entrances requiring monitoring and administrative activity.
Campus Main Gates
Supports visitor direction, entrance observation and access records within one modular unit.
Event Staff Entrances
Provides two planned working positions for controlled staff or supplier access where the available site area permits.
Frequently Asked Questions
What dimensions are shown in this security cabin plan?
The GH-2400.2 has external dimensions of 400 × 240 cm, creating an external footprint of 9.6 m².
Does 9.6 m² represent the net usable internal area?
The 9.6 m² figure is calculated from the external dimensions. The net usable internal area may be smaller because of the wall construction and should be confirmed from the technical plan.
What does the dual-workstation layout include?
The published plan shows two separate workstation positions facing surveillance windows. Furniture and monitoring equipment should not be assumed to be included.
Is this security cabin designed for two people?
The layout shows two workstation positions, but personnel capacity must be confirmed according to the selected furniture, equipment and required working clearances.
How does this model differ from the 7.2 m² cabin?
The GH-2400.2 is 100 cm longer and provides an additional 2.4 m² of external footprint. Its defining feature is the arrangement of two workstation positions rather than one office-style working area.
Can the workstation or window arrangement be changed?
Requested changes must be reviewed by Module-T UK according to the required viewing directions, equipment and available interior space.
Does this model include sanitary facilities?
No sanitary facilities are shown in the published GH-2400.2 configuration. Any alternative requirement must be reviewed separately.
What information is required for a quotation?
Provide the required quantity, delivery location, intended use, entrance layout, required viewing directions and the furniture, electrical, data or monitoring equipment needed at each workstation.
