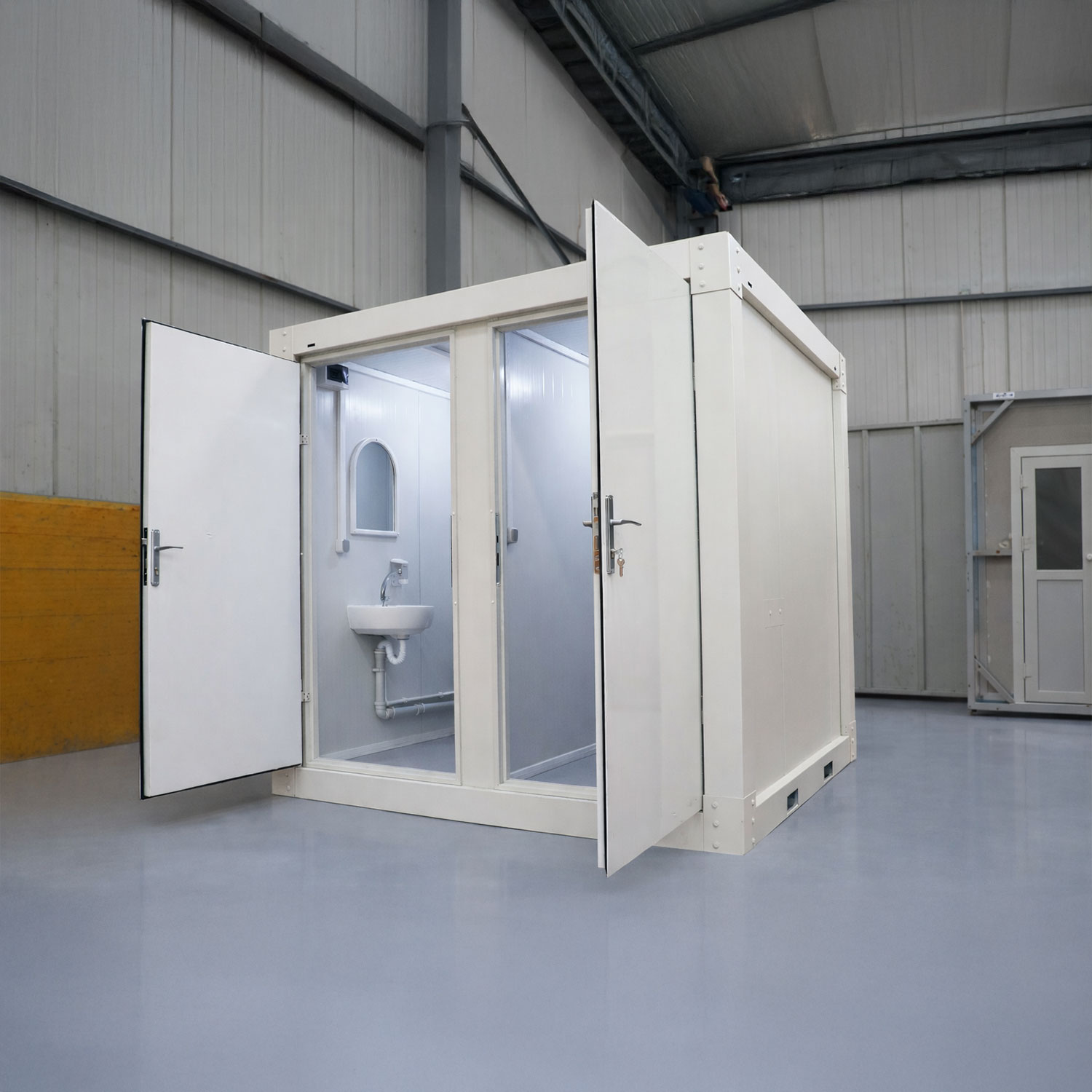

The SN-20 construction site sanitary cabin is designed for projects that require multiple toilet facilities within a compact space. Featuring two separate toilets with an integrated washbasin in each unit, it provides an efficient and hygienic solution for construction sites and temporary work areas.
The SN-20 sanitary cabin delivers a compact yet highly functional solution for sites with high sanitary usage requirements.

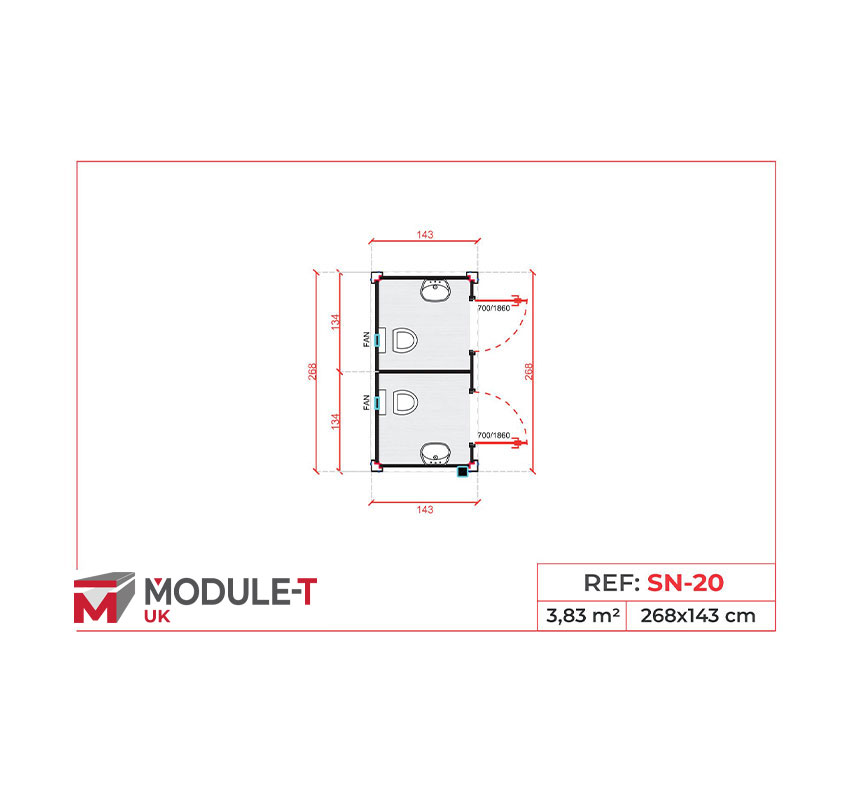

The SN-20 construction site sanitary cabin is designed to meet increased sanitary demands while maintaining a compact footprint. With a total surface area of 3.83 m² and dimensions of 268 × 143 cm, this unit integrates easily into construction sites, industrial projects, and temporary facilities where space optimization is essential.
The cabin is equipped with two separate toilet compartments, divided by a solid partition to ensure privacy and comfort. Each toilet includes its own integrated washbasin, allowing users to wash their hands immediately after use. This configuration significantly improves hygiene standards on site and reduces congestion around shared washing points.
Each compartment features an individual access door, enabling simultaneous use by multiple workers and ensuring smooth circulation during peak usage periods. The internal layout is designed to maximize usability while maintaining a clean, organized, and functional environment.
Built for frequent daily use, the SN-20 features easy-to-clean interior surfaces and a robust modular structure suited to demanding site conditions. It can be installed quickly and combined with other sanitary units when larger sanitary blocks are required. The SN-20 is an ideal solution for projects that need efficient, hygienic, and space-optimized WC facilities for multiple users.
10-Foot construction site toilets
(3.00×2.40m) or 20 feet (6×2.40m) and length up to 11.70m in a block floor. Width of a standard construction site toilet 240cm – Width oversize 300cm
Small cabin-type dimensions: single 143x143cm / double 143x268cm
Disabled toilet: minimum space 200x240cm
Standard ceiling height 240cm / 220cm.
Possibility of connecting and stacking sanitary bungalows to form larger spaces.
Highly galvanized steel frame profiles 120x150x1.50 mm – C 80x50x1.50 mm.
Highly galvanized and recessed steel floor and ceiling frame crosspieces.
Standard floor load 250kg/m2 – possibility of reinforcing the floor load up to 500kg/m2. Standard snow load 80kg/m2.
Wall insulation: 40/50mm polyurethane or rock wool (option : reinforced insulation 60 or 100mm)
Ceiling insulation: 40/50mm polyurethane (option: reinforced insulation of 60 or 100mm)
Option : 50mm or 100mm rock wool floor insulation.
Surface A1 18mm cement fiber + 3mm non-slip PVC coating – parquet or tile option. Floor load of 250kg/m2. (option: reinforcement of the floor load up to 500kg/m2)
Sandwich panel surface made of highly galvanized and lacquered steel plate. Color RAL9002
Ceiling insulation in 40 or 50mm polyurethane foam (option: ceiling insulation 60 or 100mm)
Water drainage through gutters integrated into the structure.
Insulated exterior steel doors (845×1960 mm) – interior doors in MDF for wet areas or PVC – double-glazed windows 970×1200 mm – PVC skylights 600x400mm for sanitary facilities 600x400mm. Option: custom windows – aluminum joinery – PVC or aluminum roller shutters, protective bars.
Ceramic washbasin (option: stainless steel basin)
Classic WC, ceramic urinal (option: stainless steel)
Accessories included: soap dish/toilet paper, soap dispenser, mirror.
Option: 15L or 30L sink water heater
Option: 1000W or 2000W wall-mounted convector heater.
2x36W LEDs, IP44 sockets, Viko switches, Siemens fuses, NF C15-100 wiring.
Connection to the sewer system or autonomous operation. (tank, septic tank, drainage)
Mirrors, paper holders, soap dispensers, vanity units, AFNOR marking.
Configuration for PMR toilets: ramp n, PMR door, grab bar and stainless steel accessories
Security : steel bars in painted steel.
Natural ventilation with PVC ventilation grille and electric extractor fan (VMC) 100mm / 150mm
